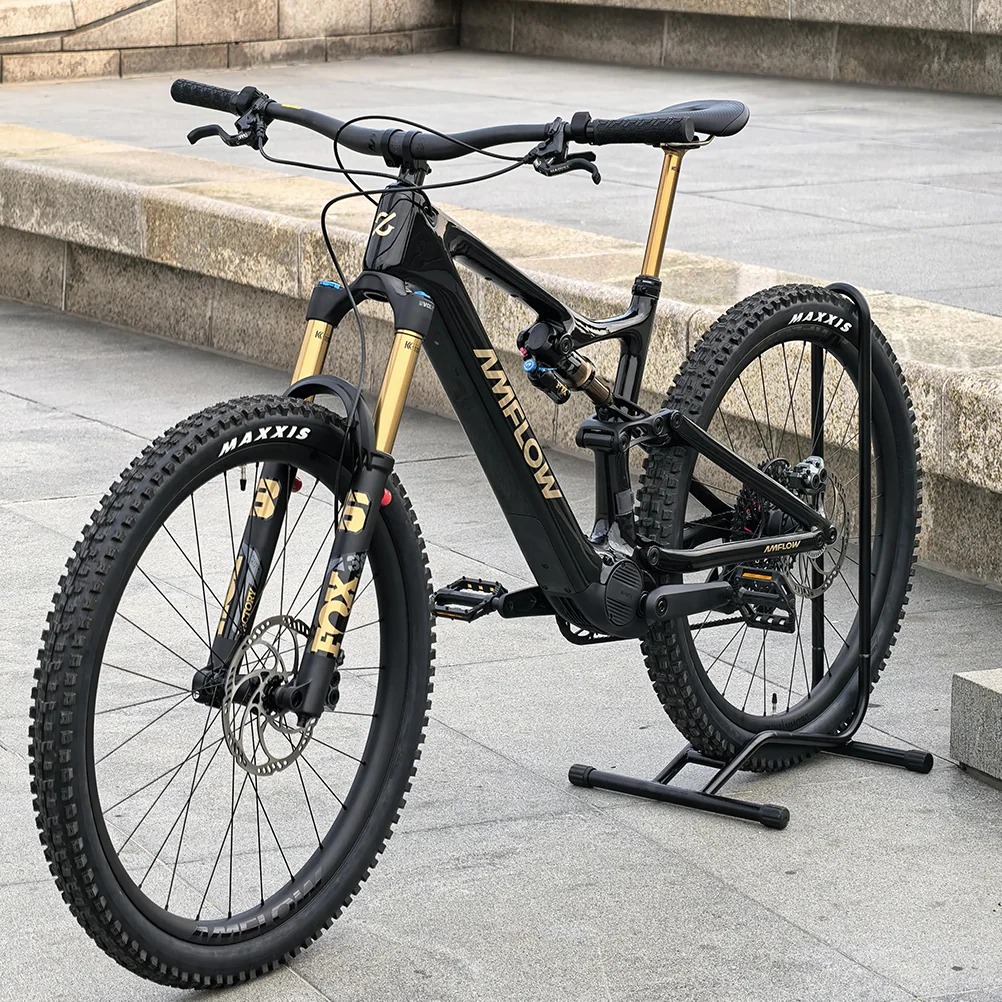

Amflow PL Carbon Pro is the high-end full power carbon eMTB built for riders who demand the ultimate in performance. Featuring an 850 W DJI Avinox motor (up to 1,000 W peak) and 120 Nm of torque, it delivers powerful, smooth, and precise assistance across all terrain.
With its ultra‑light 2.27 kg carbon frame and upgraded premium components, this bike achieves an approximate total weight of 19.2 kg, standing out among full power eMTBs for agility and responsiveness. The “Pro” version includes enhancements for superior control and durability.
Tailored assistance modes
The Avinox system offers 5 assist modes to match terrain and riding style:
Features like Walk Mode and Auto Hold simplify low‑speed maneuvering.
Battery, range & fast charging
The integrated 2.87 kg battery ensures high energy density and longevity, retaining up to 80% capacity after 500 cycles. Fast charging lets you go from 0% to 75% in just 90 minutes, minimizing downtime and maximizing trail time.
Why choose Amflow PL Carbon Pro
Amflow PL Carbon Pro is engineered for riders who demand nothing but the best: advanced tech, extreme lightness, and peak performance. Perfect for tackling demanding trails with no compromise.
Explore available variants and get ready to experience a new standard of electric trail riding
| Accessories: | Torque spanner (3~25 N-m, Hex 2/3/4/5/6mm, Torx® 25), damper pump |
|---|---|
| Battery: | Avinox integrated battery: 600 Wh or 800 Wh |
| Battery capacity: | 600 Wh – 699 Wh, 800 Wh – 899 Wh |
| Battery position: | Intube battery / frame integrated |
| Brake: | Magura MT7 Pro hydraulic disc brake 4-piston |
| Cassette: | SRAM XS-1295 Eagle Transmission 10-52T |
| Chain: | SRAM X0 Eagle Transmission Flattop chain |
| Charger: | Avinox Fast Chargert: 12 A/508 W |
| Colour: | Cosmos black |
| Control unit: | Avinox wireless controllers – right & left |
| Crank: | DJI Avinox SL crank (M/L: 155 mm; XL/XXL: 160 mm) |
| DJI Avinox System: | M1 |
| Damper: | FOX FLOAT X Factory, size (185 × 55 mm), custom tune, EVOL air housing, 2-position lever with LSC adjustment |
| Derailleur/drive type: | Derailleur – chain drive |
| Disc brakes: | Magura 203 mm Storm HC Rotor |
| Display: | Avinox display 2 inch OLED-Touch-Display |
| Drive system: | DJI Avinox |
| E-Bike Types: | E-Mountainbike (E-MTB), Fully E-MTB, Light E-MTB |
| Fork: | FOX 36 Float 29″ Factory eBike 160mm 15×110 |
| Frame: | Amflow PL Carbon frame |
| Frame type: | Mens |
| Front light: | Clip-on light |
| GPS: | integrated |
| Grips: | Amflow Enduro Grips |
| Handlebar: | Amflow Enduro carbon handlebars, 25 mm height, 800 mm width |
| Item: | Amflow PL Carbon Pro – 2026 |
| Manufacturer: | Amflow |
| Model year: | 2025 |
| Motor: | Avinox M1 drive unit: 105 Nm |
| Pedal: | MTB pedals |
| Permissible total weight: | 125 kg |
| Rear derailleur: | SRAM X0 Eagle Transmission rear derailleur with power cable |
| Rear light: | Clip-on light |
| Saddle: | Ergon SM PRO M/L |
| Seat post: | Fox Transfer Factory, adjustable in 5 mm |
| Shift lever: | SRAM AXS Pod Controller |
| Spring travel: | Front: 160mm | Rear: 160mm |
| Stem: | Amflow Enduro stem, CNC milled, 35 mm length, 35 mm clamping |
| Tyres: | Front: Maxxis Assegai MaxxTerra 29 × 2.5″ WT 3C EXO E-25 TLR | rear: Maxxis Dissector MaxxTerra 29 × 2.4″ WT 3C EXO+ E-25 TLR |
| Weight: | about 19.2 kg (Size M – 600 Wh) |
| Wheel size: | 29″ |
| Wheels: | Amflow HMC-30, carbon, 29‘’, 30 mm inner width, 28H, tubeless compatible, SAPIM E-Light Straightpull |
